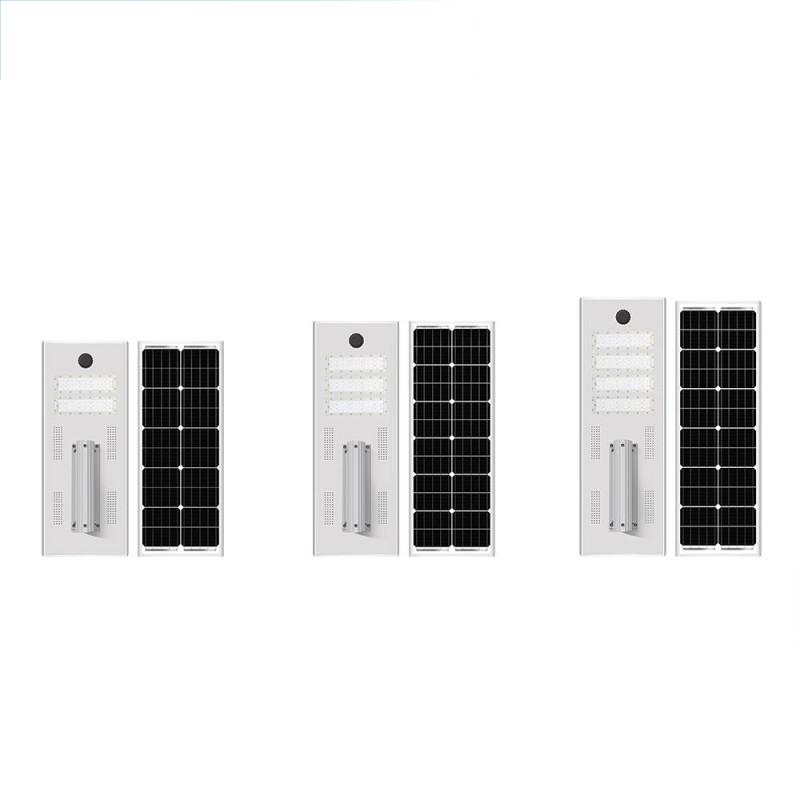

XCPB series integrated aluminum solar street light is an all-in-one outdoor solar lighting solution, available in 40W, 50W, 60W, 80W and 100W power options. Adopting full aluminum alloy housing, the lamp features excellent heat dissipation, corrosion resistance and IP65 waterproof performance, adapting to rainy, high-temperature and coastal salt fog environments.
Built-in high-efficiency monocrystalline silicon solar panel and long-life lithium iron phosphate battery, it supports automatic dusk-to-dawn light control. Equipped with sensitive radar human body induction, the light runs at full brightness when pedestrians or vehicles pass, and dims to low power standby when no activity, greatly extending lighting duration and saving energy.
No complicated wiring or external power supply is required, easy to install on lamp poles for rural roads, community walkways, parking lots, gardens, villas and outdoor engineering projects. All models support remote control mode adjustment, and we provide OEM & ODM customization for bulk wholesale orders.

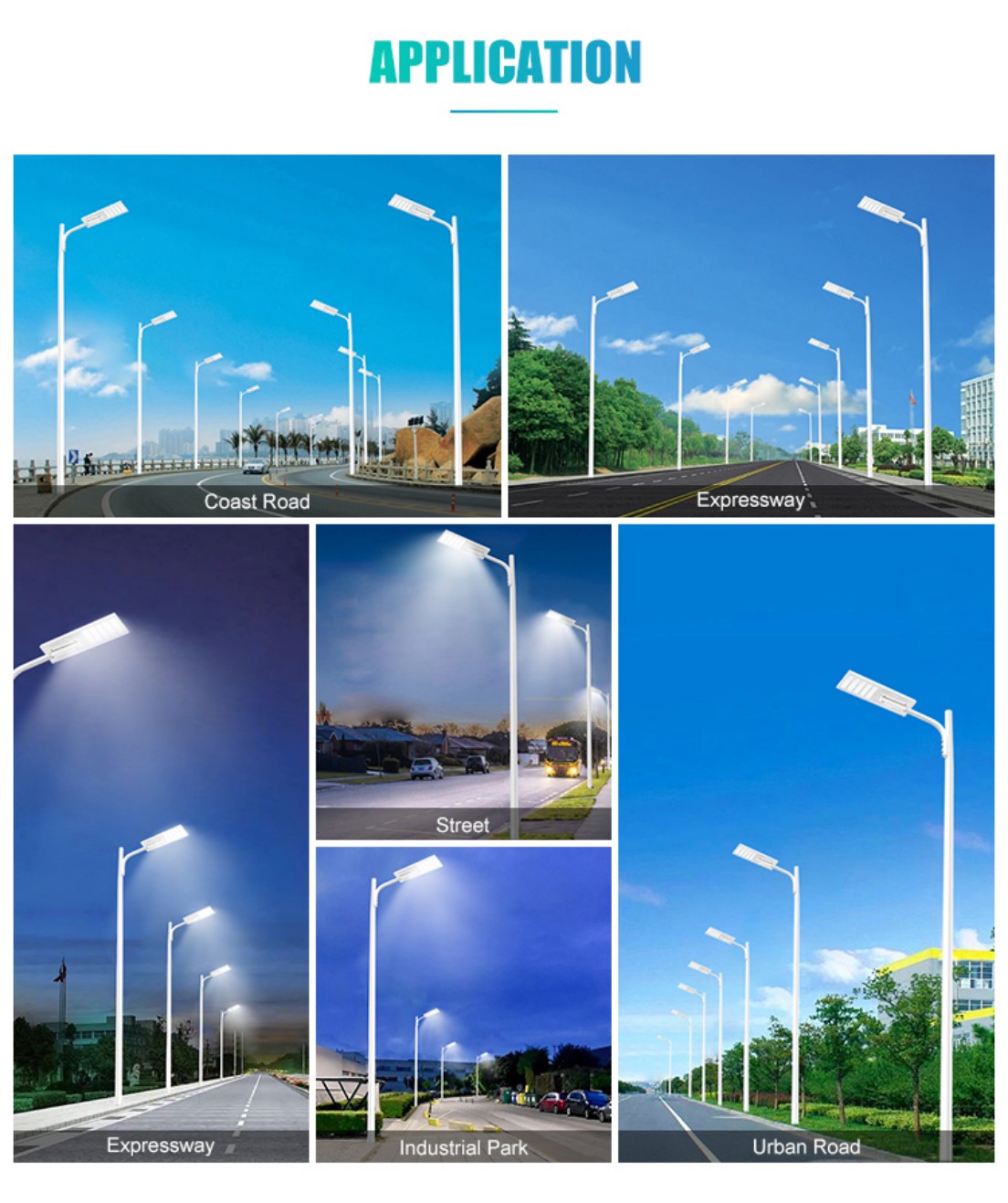

Applications:
Certified Quality for Global Projects

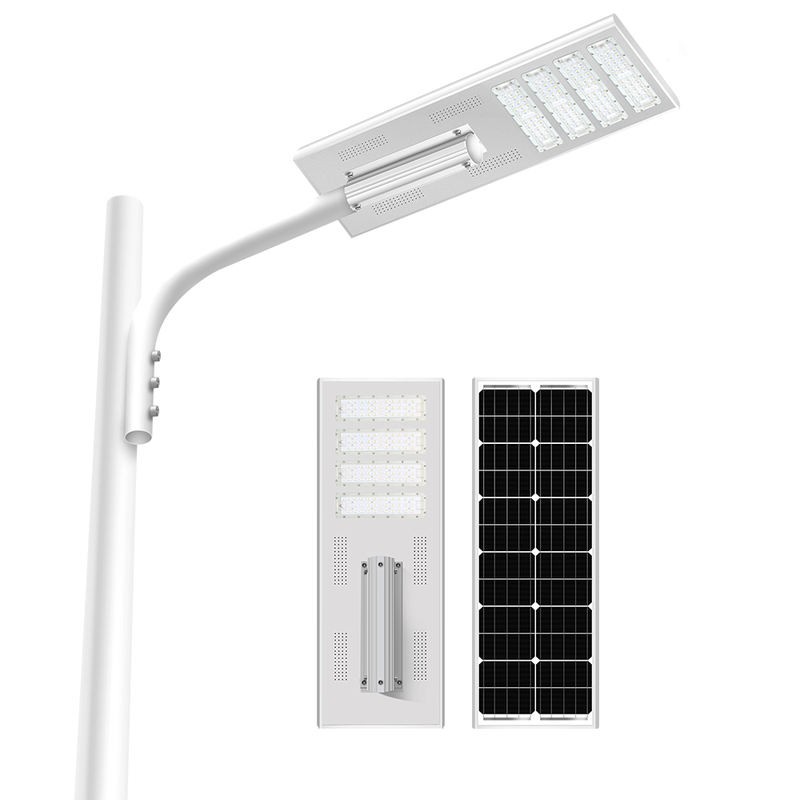

XCPB Series All In One Solar Street Light Aluminum Body 40W-100W Motion Sensor Waterproof Outdoor Street Lighting

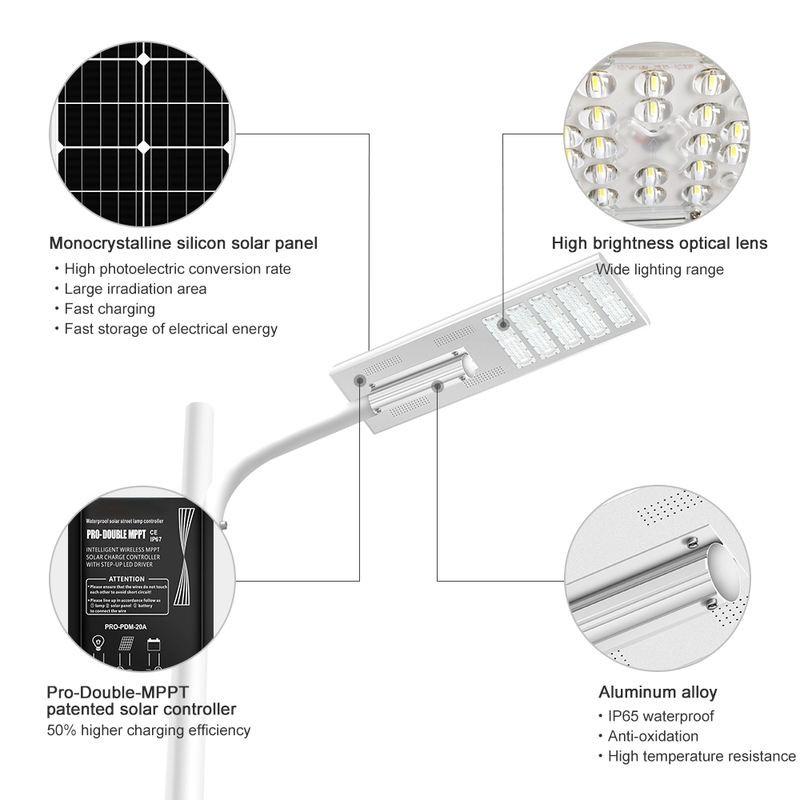

All-in-One Integrated Structure, Plug & Play Installation

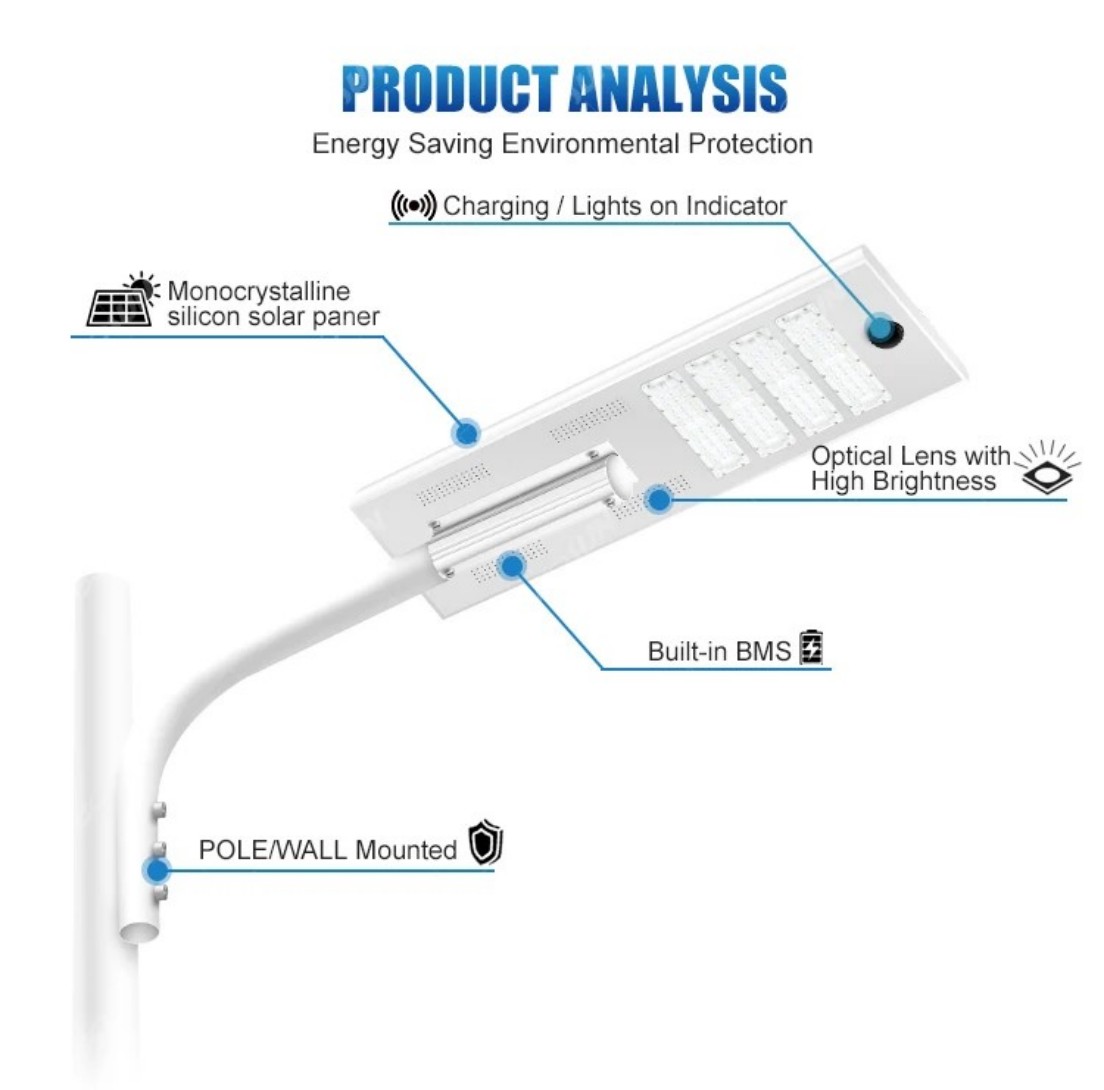

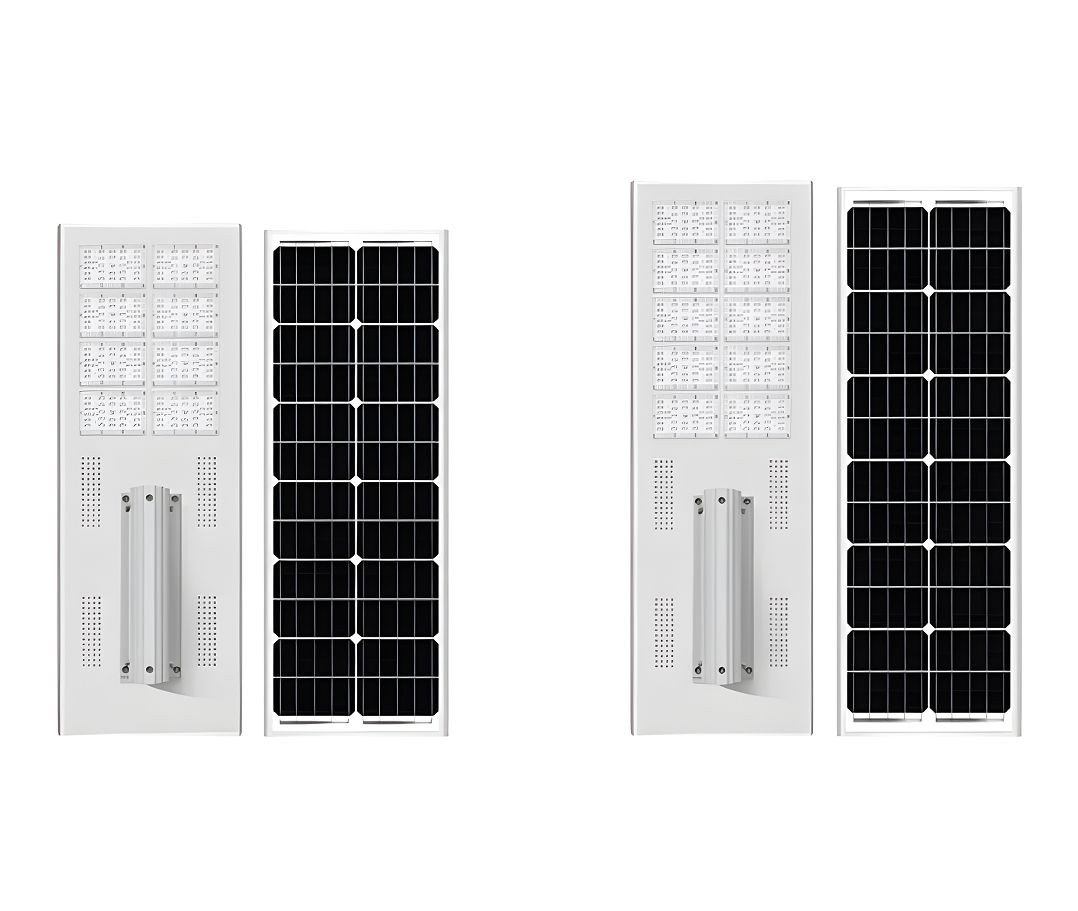

The XCPB series integrates monocrystalline silicon solar panel, LED light source, lithium iron phosphate battery and intelligent controller into one compact aluminum housing. No complicated wiring, external battery box or separate brackets are needed. One worker can finish installation within 15 minutes, greatly cutting labor cost and construction period for engineering projects. Integrated design also reduces component loss during transportation, improving container loading rate and lowering logistics expenses.
Full Aluminum Alloy Housing, IP65 All-Weather Waterproof & Durable
The lamp body adopts thickened die-cast aluminum profile with built-in heat dissipation channel, which efficiently dissipates heat generated by LED and battery, slowing down light decay and battery aging. The fully sealed structure reaches IP65 waterproof & dustproof grade, resisting heavy rain, high temperature, coastal salt fog, sandstorm and frost. It works stably in ambient temperature from -20℃ to 60℃, suitable for all global outdoor harsh environments.

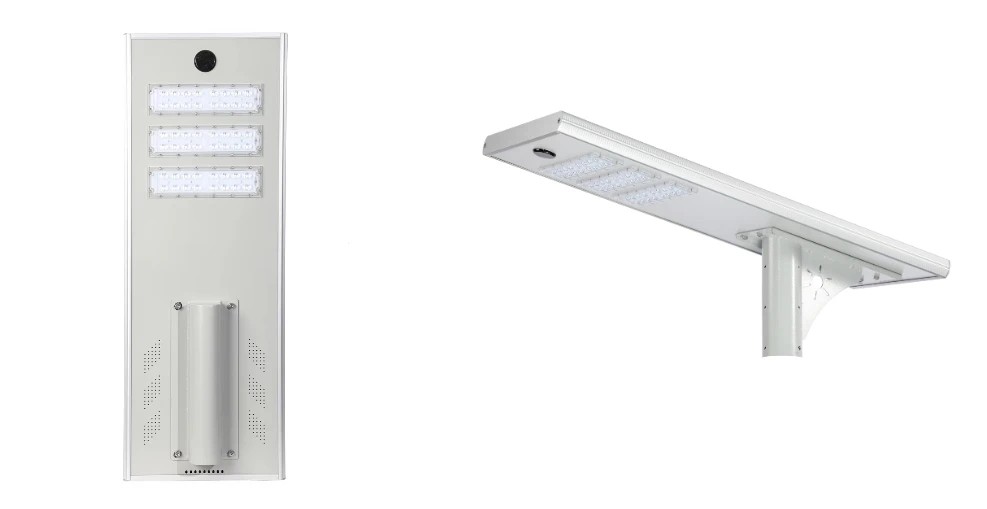

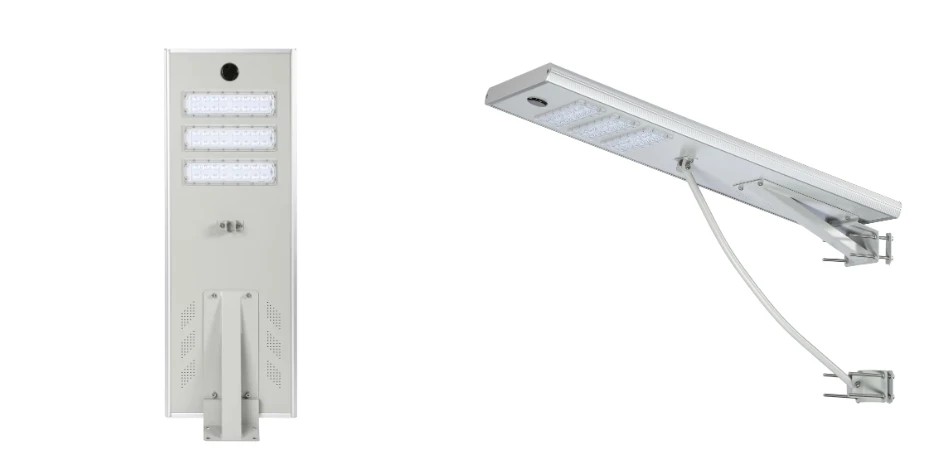

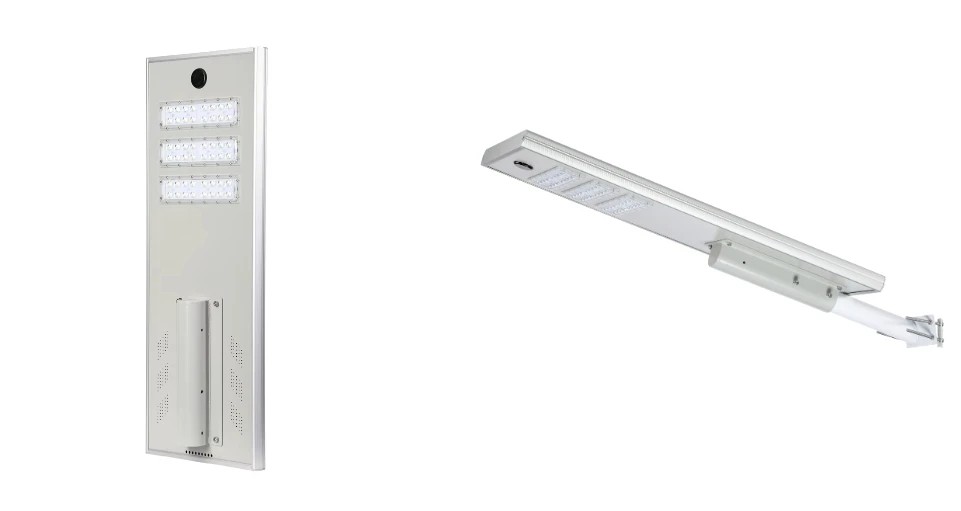

Three Flexible Installation Methods, Adapt to All Site Conditions
Equipped with universal adjustable mounting bracket, supporting pole-mounted, wall-mounted and vertical bracket installation three modes. Pole-mounted for rural roads, main streets and parking lots; wall-mounted for villa courtyard, community walkway and factory fence without extra lamp poles; vertical bracket installation for slope, roadside green belt and low-height pedestrian path. One lamp matches multiple construction layouts, no extra accessories required for different installation demands.
Dual Intelligent Control System, Ultra Energy Saving & Long Standby

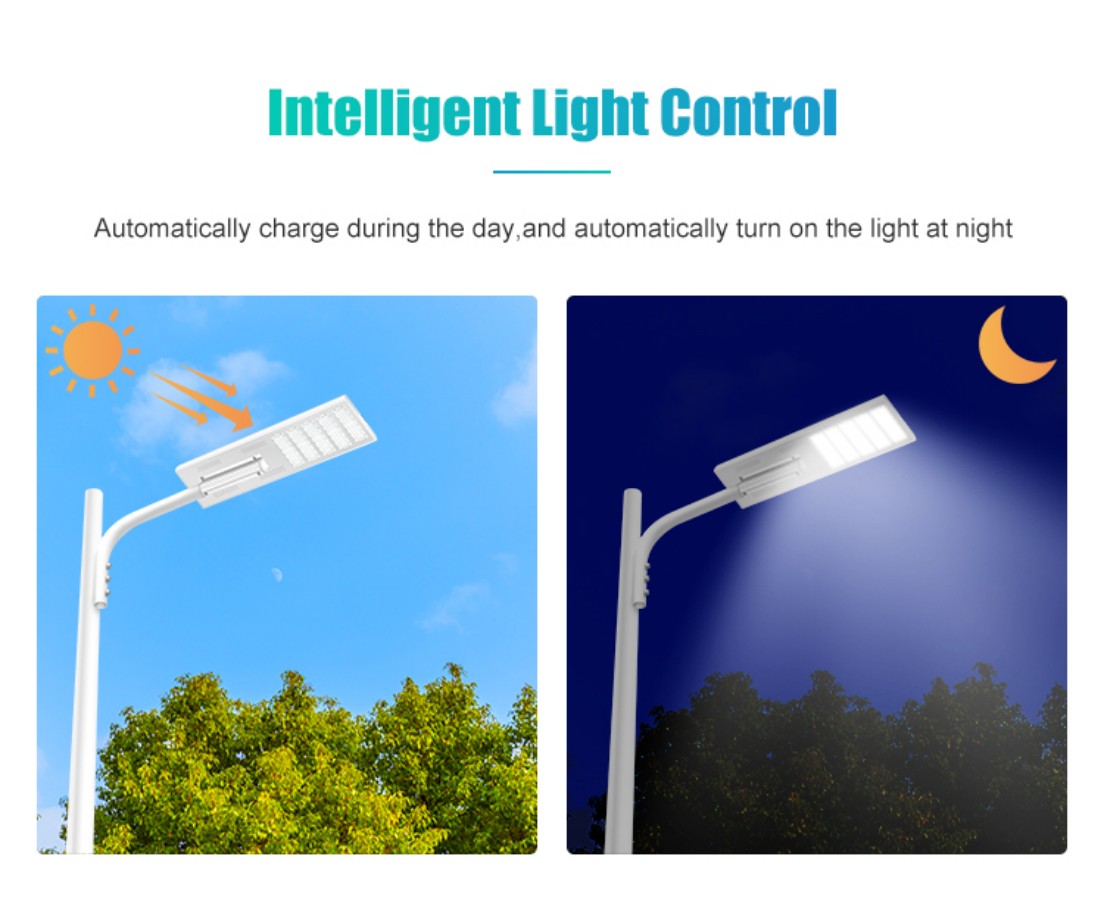

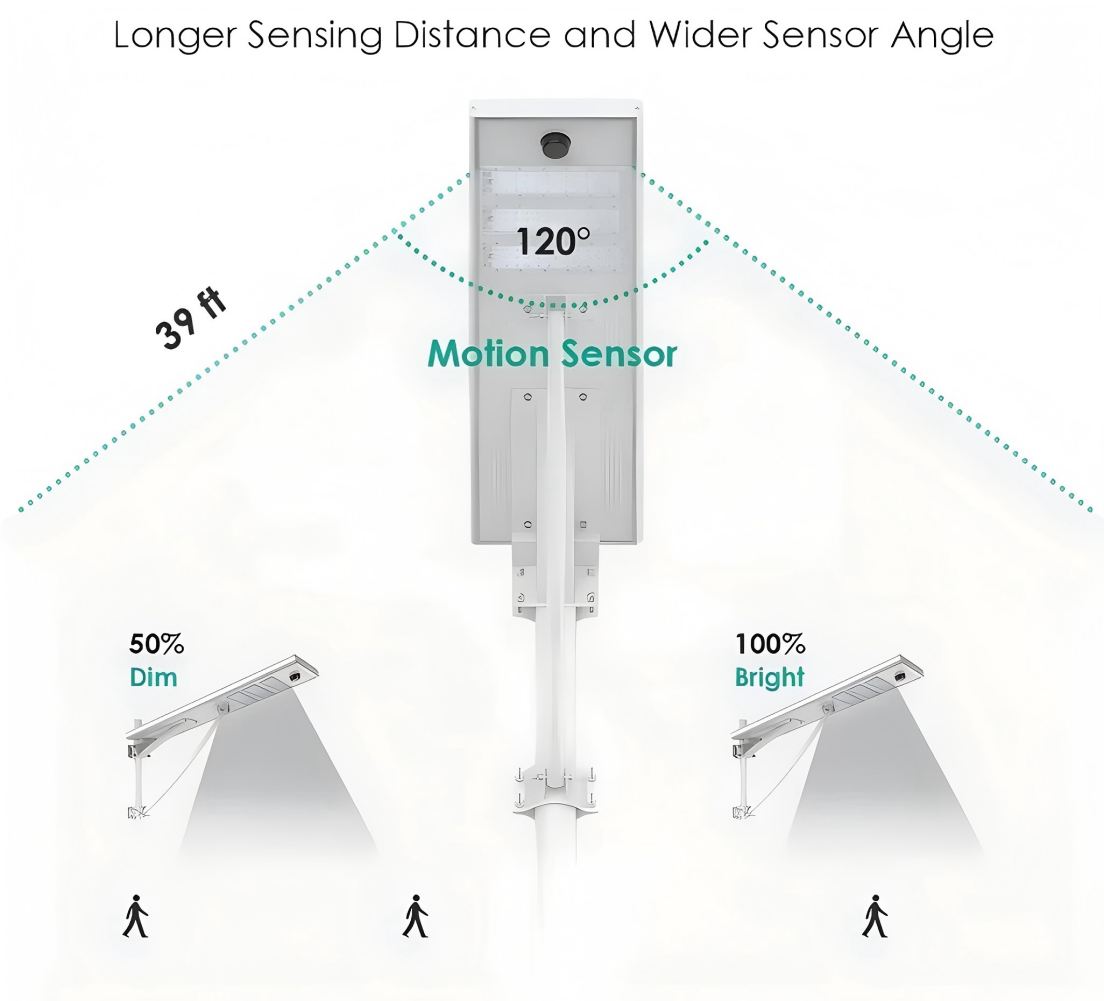

Built-in dusk-to-dawn light sensor + high-sensitivity radar motion sensor dual control system. It automatically turns on at sunset and off at sunrise; when pedestrians or vehicles pass by, the lamp switches to full brightness, and dims to low-power standby when no movement is detected, cutting power consumption by over 60%. It supports remote control to customize brightness, lighting duration and sensor sensitivity, balancing lighting effect and battery endurance.

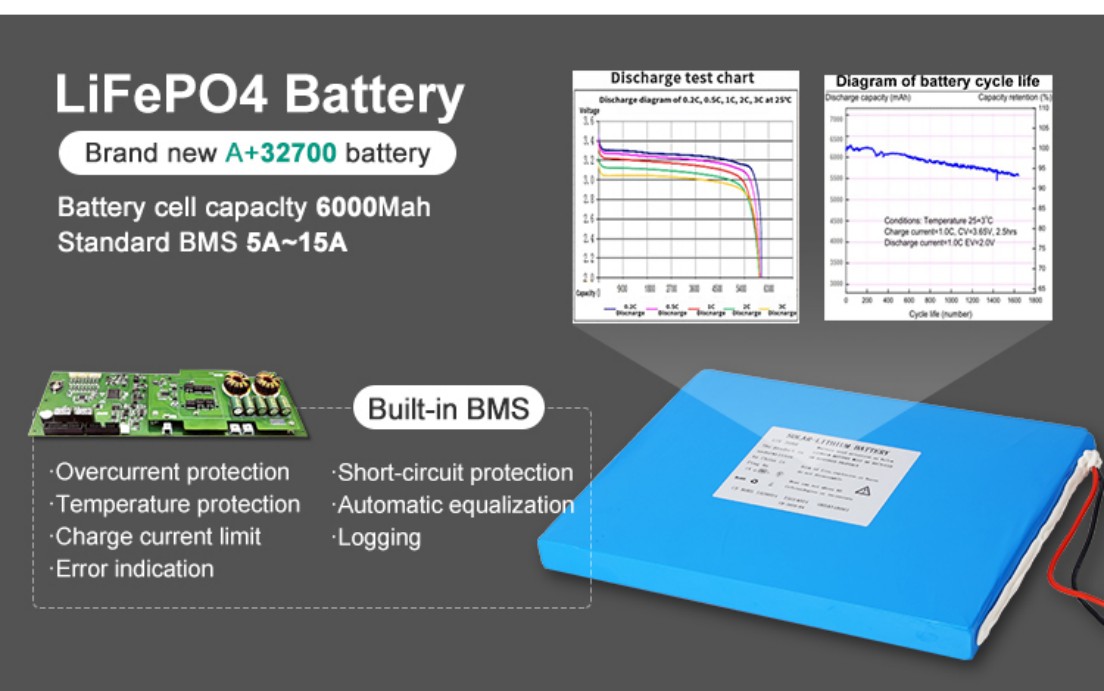

High Efficiency Solar Power & Safe LiFePO4 Battery
Adopts high conversion monocrystalline silicon solar panel, with excellent weak light charging performance, generating sufficient electricity even on cloudy days. Matched large-capacity 32650 lithium iron phosphate battery, featuring 2000+ charge-discharge cycles, low temperature resistance, non-flammable and explosion-proof, much safer than lithium cobalt oxide battery. Multiple power options including 40W/50W/60W/80W/100W for small alleyways to main road projects.
Zero Electricity Cost, Eco-Friendly & Wide Application
100% powered by solar renewable energy, no connection to municipal power grid, zero daily electricity expense. It conforms to global carbon neutrality and energy-saving procurement standards, ideal for off-grid areas without power supply. Widely used in rural roads, residential quarters, parking lots, gardens, villas, scenic spots, farmland passages and outdoor municipal lighting projects.
Support OEM & ODM Customization, Bulk Wholesale Available
We provide complete customization service for bulk orders, including laser brand LOGO, customized packaging, adjustable light color temperature, extended battery capacity and upgraded solar panel power. All XCPB series lamps pass CE & RoHS certification, meeting customs clearance requirements for Southeast Asia, Middle East, Africa, Europe and America. Stable monthly production capacity ensures timely delivery for large-scale municipal bidding projects.

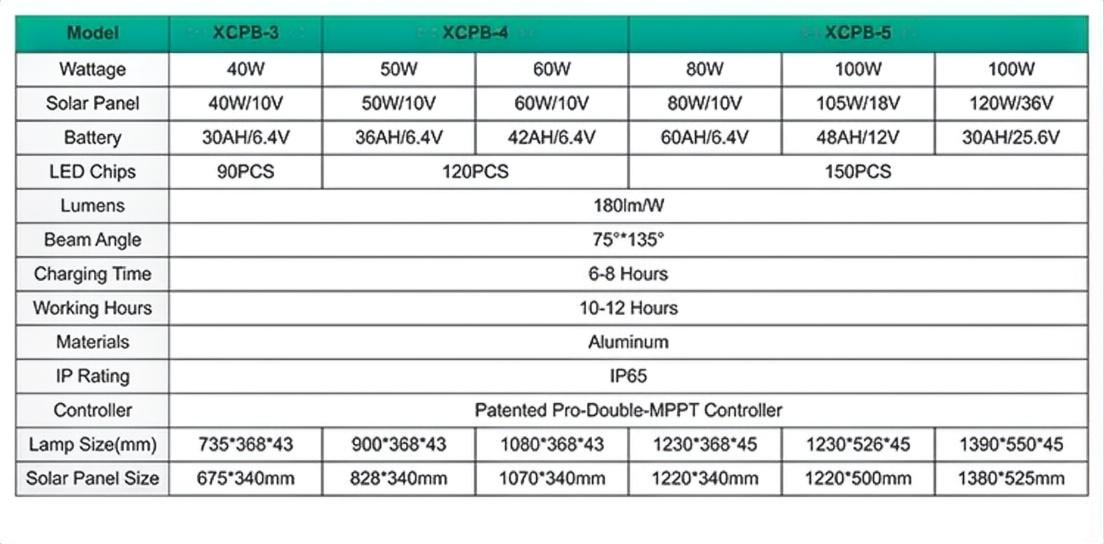

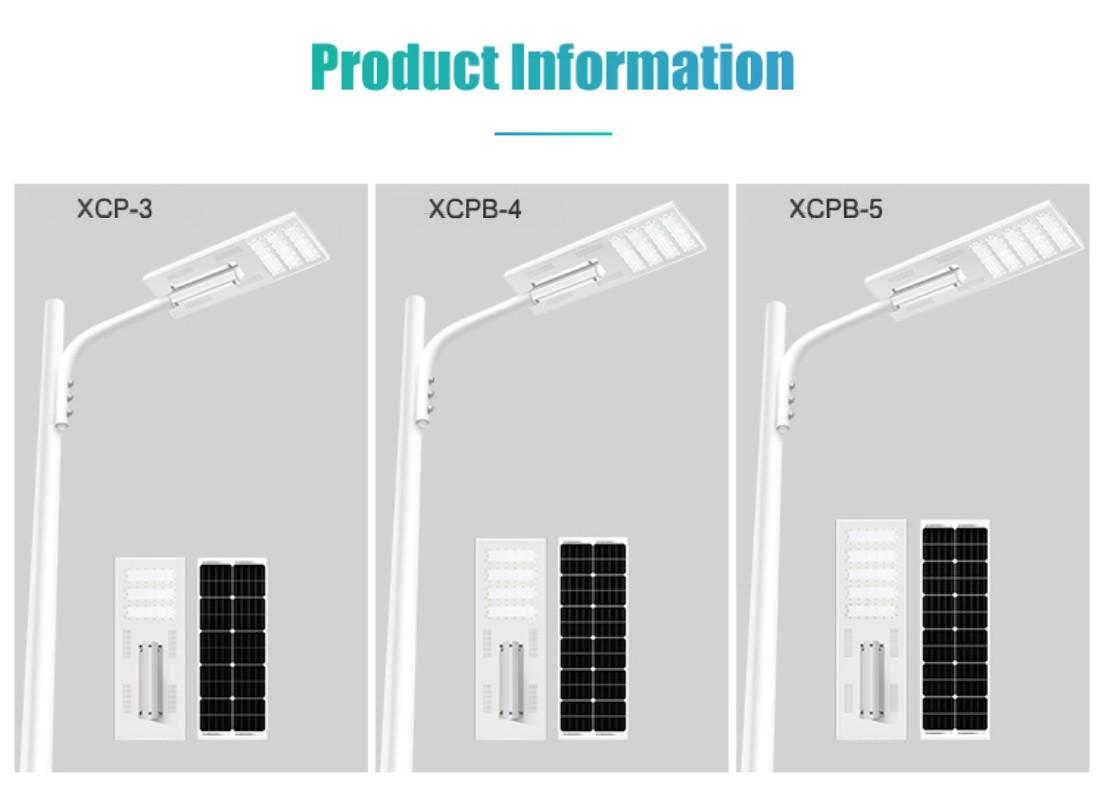

| Model | XCPB-3 | XCPB-4 | XCPB-5 | |||
| Wattage | 40W | 50W | 60W | 80W | 100W | 100W |
| Solar Panel | 40W/10V | 50W/10V | 60W/10V | 80W/10V | 105W/18V | 120W/36V |
| Battery | 30AH/6.4V | 36AH/6.4V | 42AH/6.4V | 60AH/6.4V | 48AH/12V | 30AH/25.6V |
| LED Chips | 90PCS | 120PCS | 150PCS | |||
| Lumens | 180lm/W | |||||

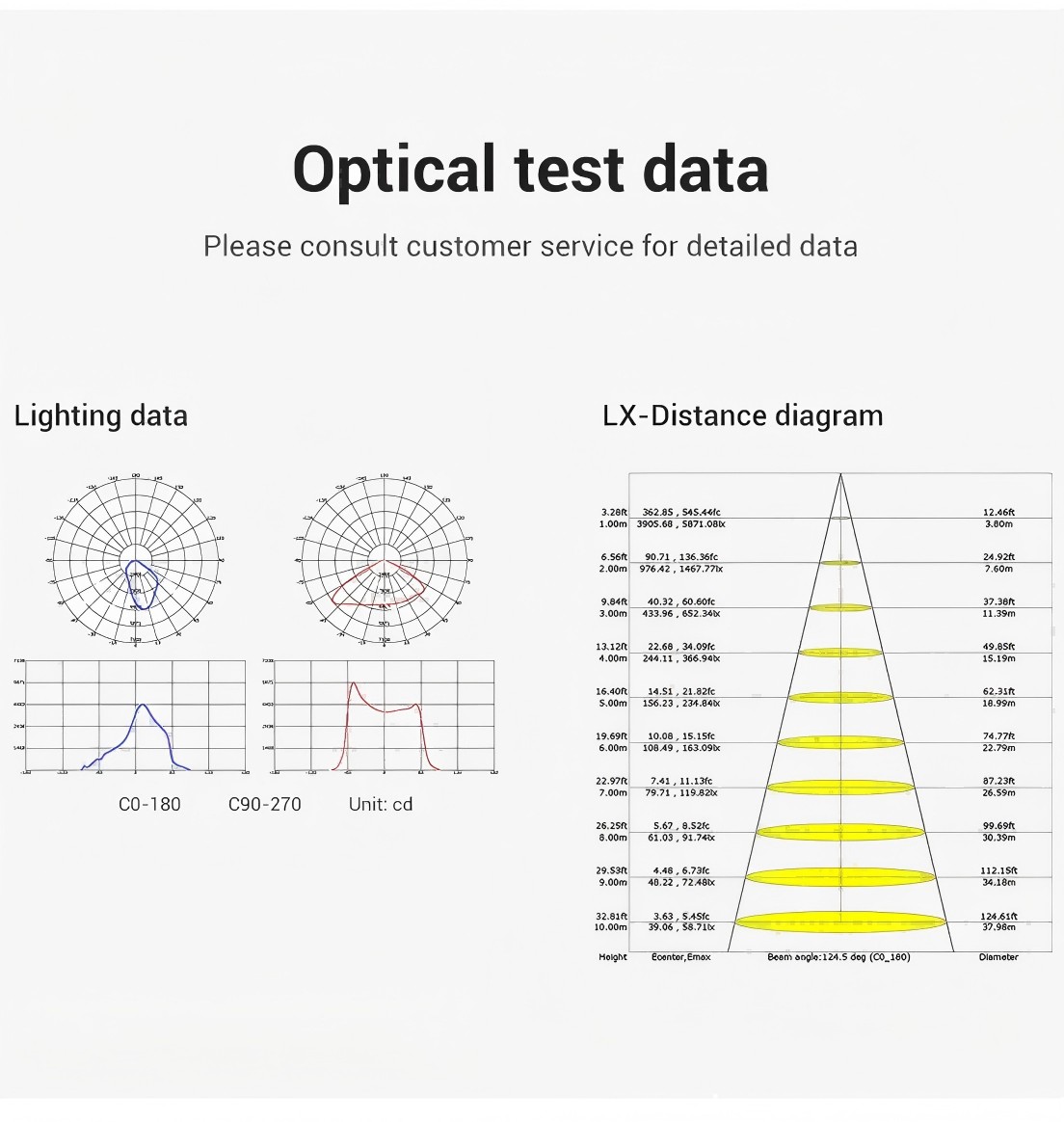

| Beam Angle | 75°*135° | |||||
| Charging Time | 6-8 Hours | |||||
| Working Hours | 10-12 Hours | |||||
| Materials | Aluminum | |||||
| IP Rating | IP65 | |||||

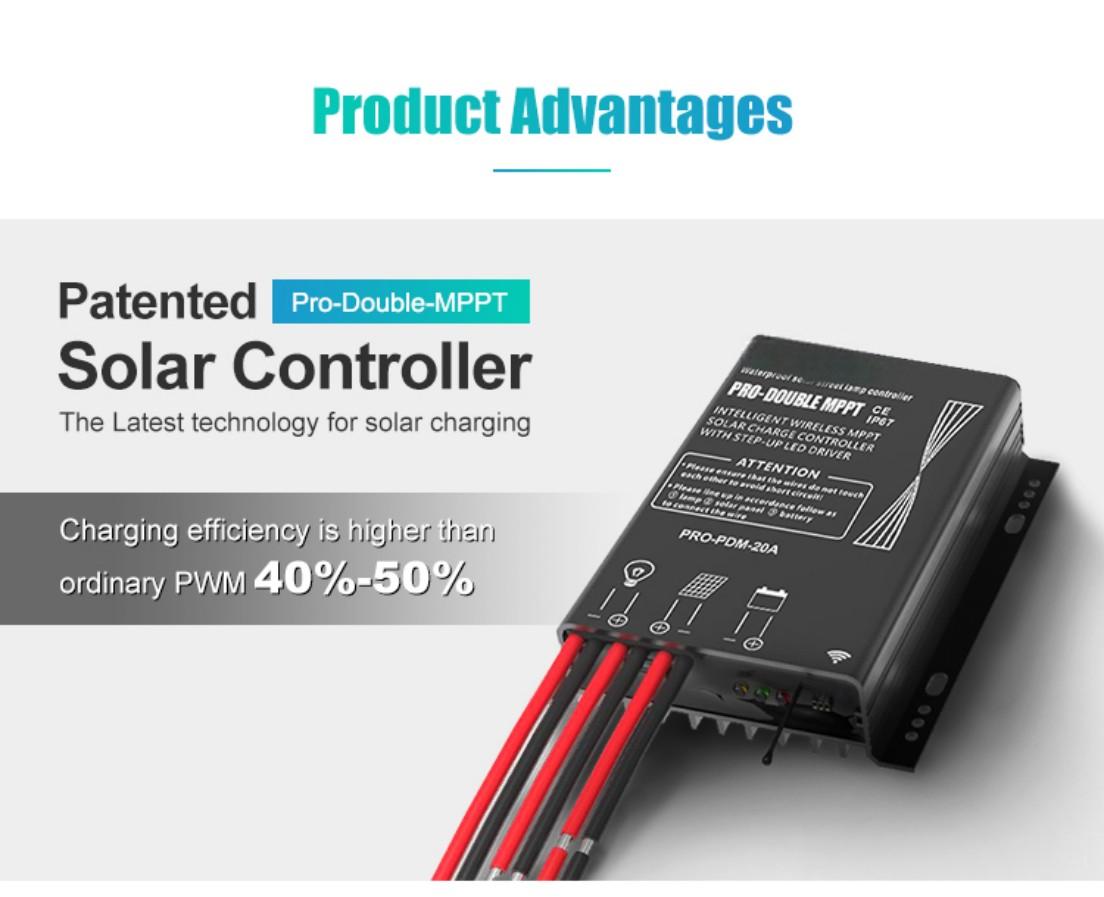

| Controller | Patented Pro-Double-MPPT Controller | |||||
| Lamp Size(mm) | 735*368*43 | 900*368*43 | 1080*368*43 | 1230*368*45 | 1230*526*45 | 1390*550*45 |
| Solar Panel Size | 675*340mm | 828*340mm | 1070*340mm | 1220*340mm | 1220*500mm | 1380*525mm |
Step 1: Take apart the sleeve
First, loosen the fixing screws on the sleeve, disassemble the sleeve, and prepare for subsequent installation.
Step 2: Install the sleeve onto the lamp pole
Put the split sleeve on the lamp pole, align the holes, and then tighten the screws on both sides to firmly fix the sleeve on the lamp pole.
Step 3: Connect the lamp holder to the sleeve
Align the mounting base at the bottom of the lamp head with the interface at the top of the sleeve, insert it, then tighten the connecting screws to ensure that the lamp head and the sleeve are tightly combined.
Step 4: Adjust the irradiation angle
Loosen the angle adjustment screw at the connection between the lamp head and the sleeve, adjust the lamp head to a suitable irradiation angle, and then tighten the screw again to fix it.
