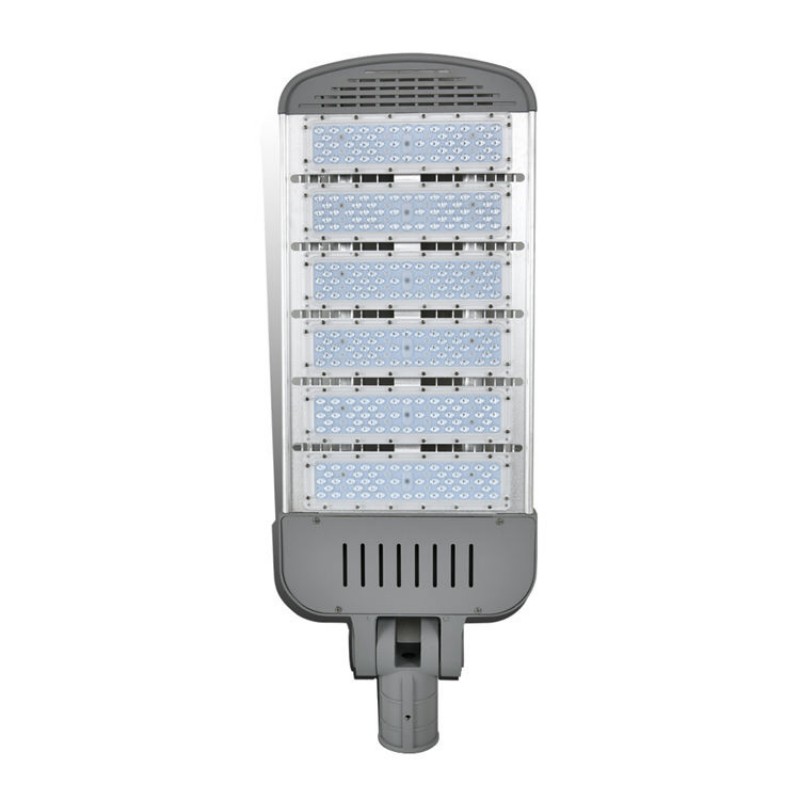

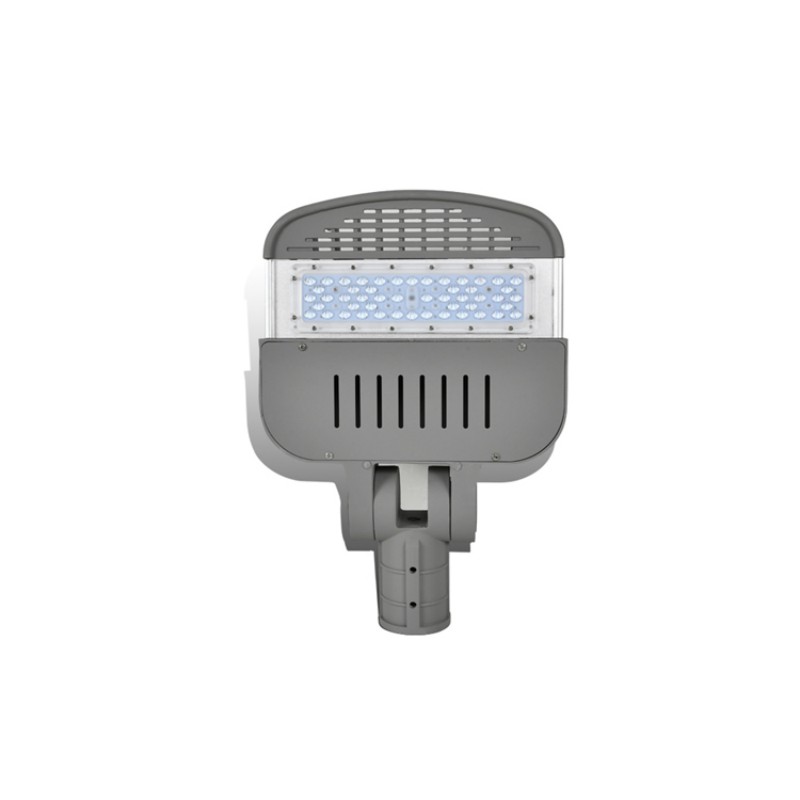

XC TJD Modular Adjustable LED Street Light 50W-300W IP66 Municipal Project Wholesale

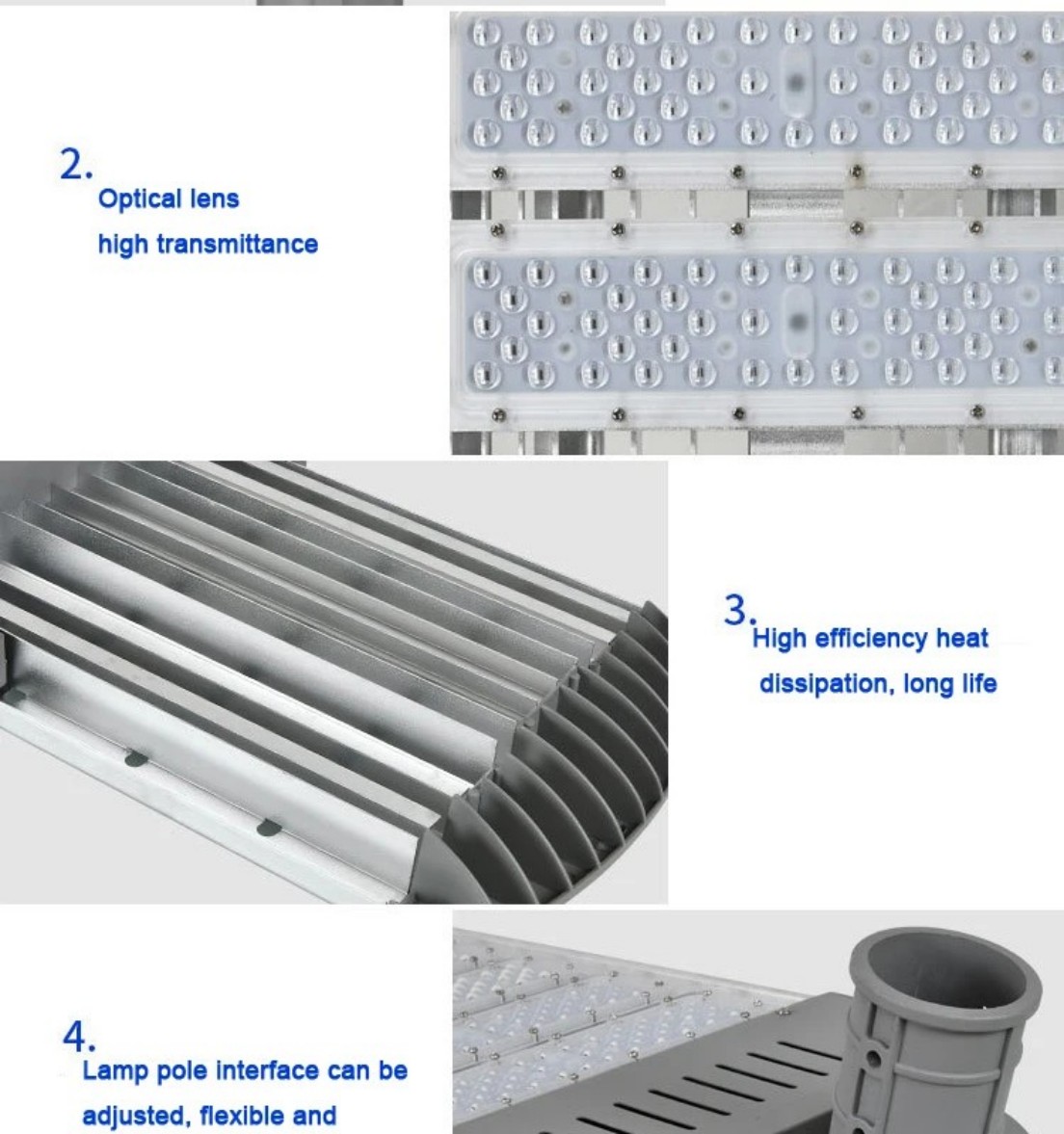

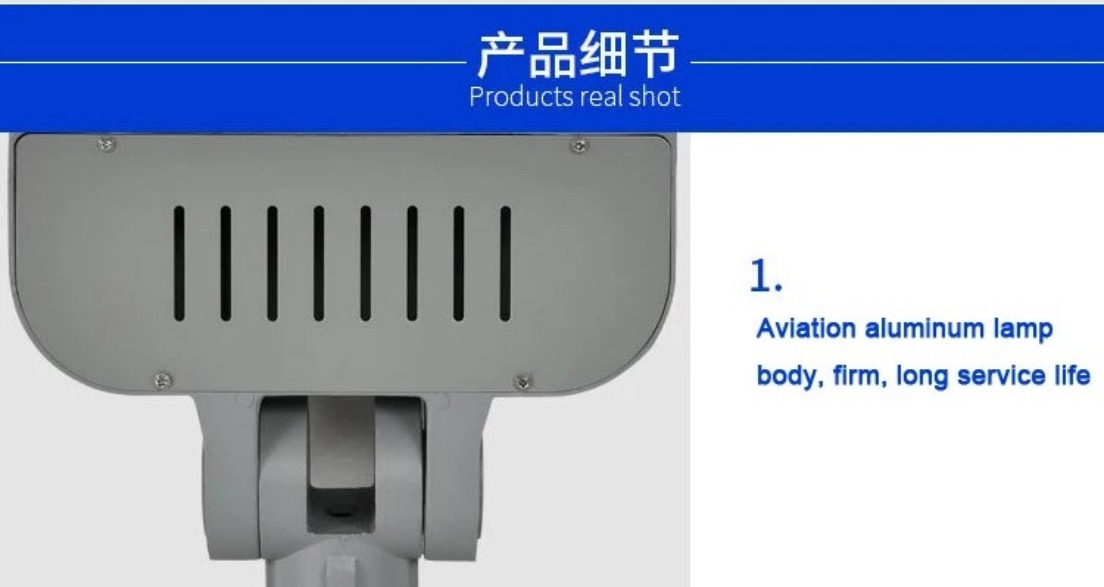

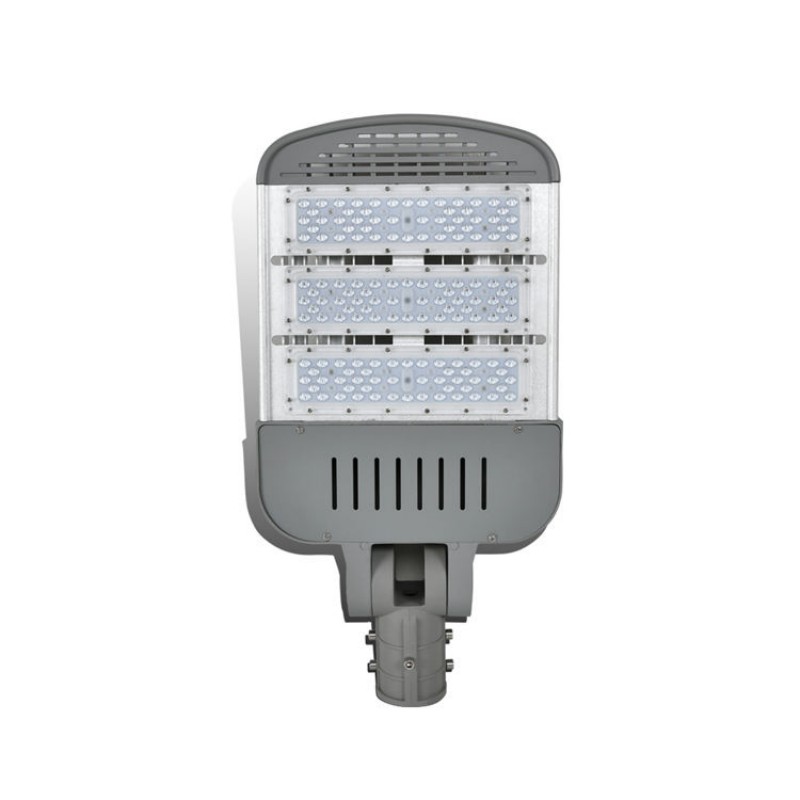

Stretch Extruded Aluminum Profile Housing

The XC TJD street light adopts integrated stretch extruded aluminum profile housing, different from ordinary die-cast aluminum lamps. It features lighter weight, higher thermal conductivity and uniform linear heat dissipation grooves. The integral long-strip heat dissipation structure accelerates heat exchange efficiently, completely solving heat accumulation during long-term high-temperature operation. The electrostatic anti-oxidation spray surface ensures outdoor anti-corrosion, anti-rust and fade-resistant performance for years.

0-10V Dimmable Intelligent Lighting System

This modular street light supports standard 0-10V dimming function, realizing stepless brightness adjustment according to road traffic flow, night period and urban smart lighting system requirements. It perfectly matches smart city engineering, energy-saving renovation projects and municipal graded lighting policies, effectively reducing overall power consumption.

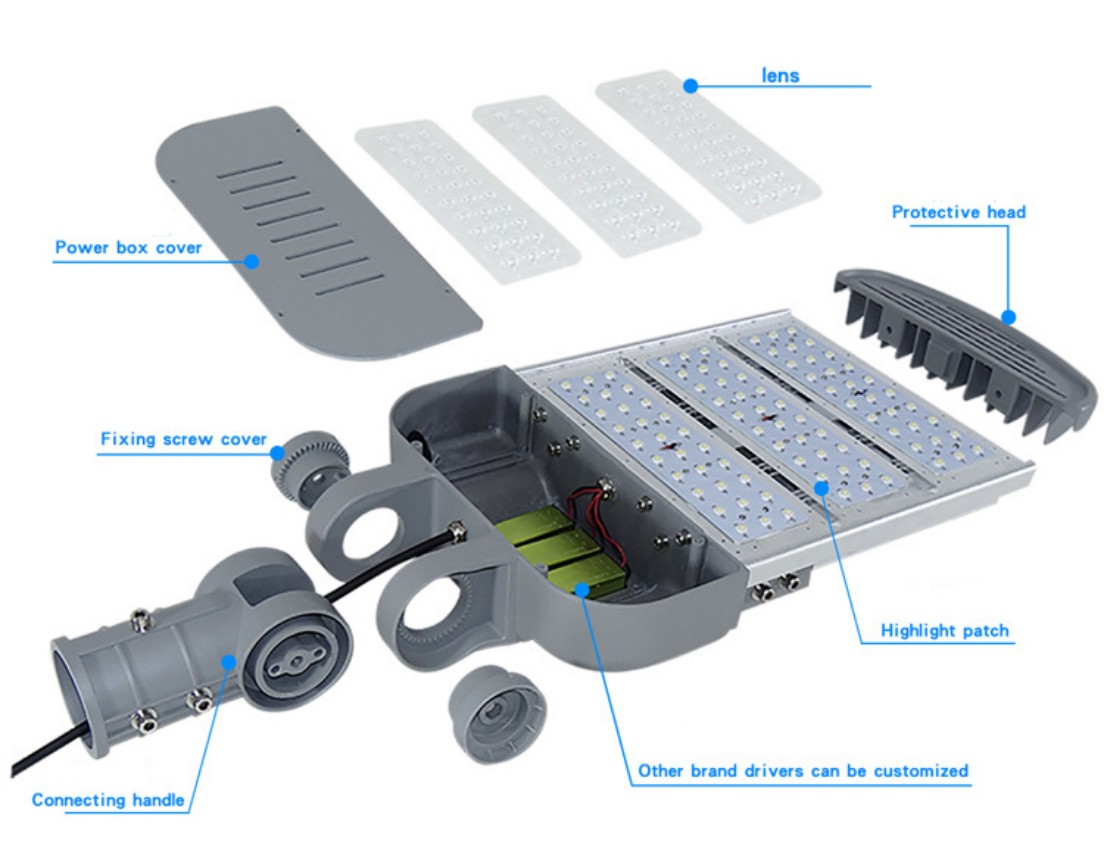

Optional Meanwell / Inventronics Driver

Equipped with high-end optional mainstream brand drivers: Meanwell driver and Inventronics driver. Both famous industrial-grade drivers feature stable output, low failure rate, strong anti-interference ability and wide voltage tolerance. It guarantees long-term stable operation of the whole lamp and meets strict quality requirements of European, Middle Eastern and North American municipal projects.

Industry-Leading 5-Year Long Warranty

Supported by strict industrial-grade configuration and brand accessories, the XC TJD modular street light provides a full 5-year whole lamp warranty, much longer than the ordinary 2-3-year warranty of market products. It greatly reduces post-maintenance pressure and replacement costs for municipal contractors and large engineering projects.

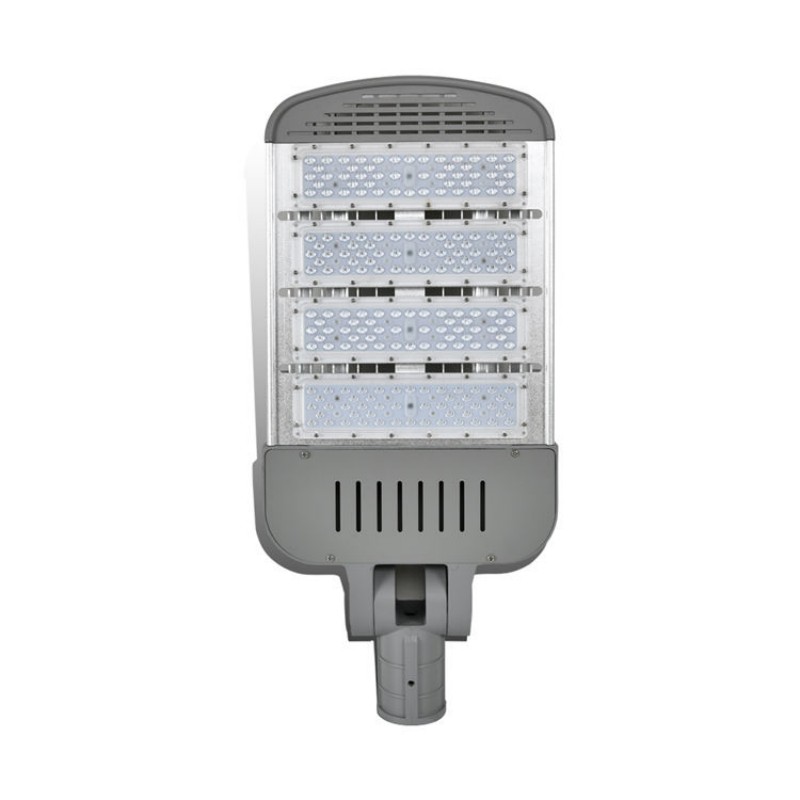

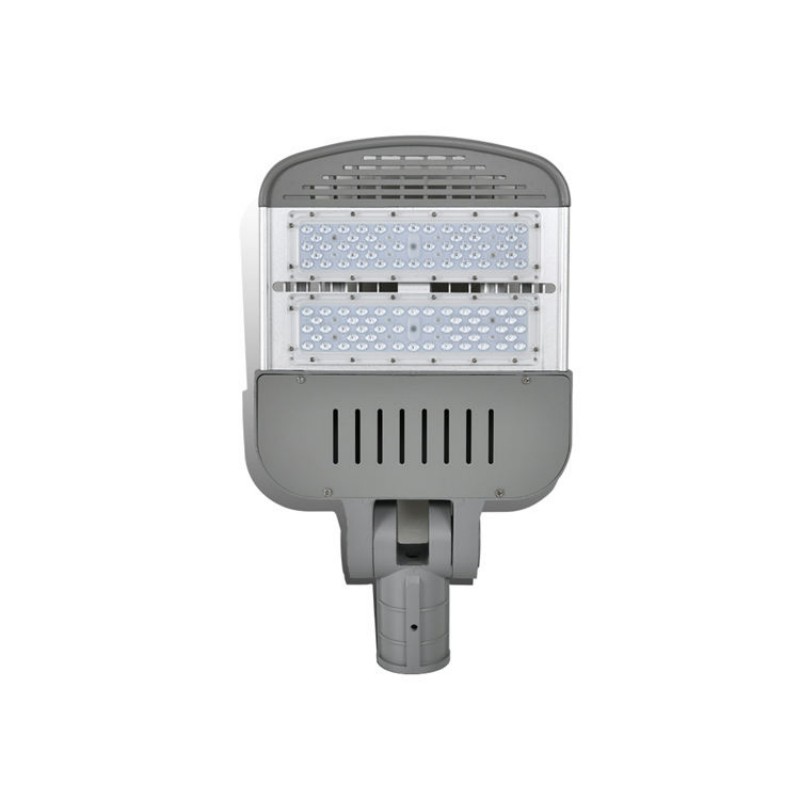

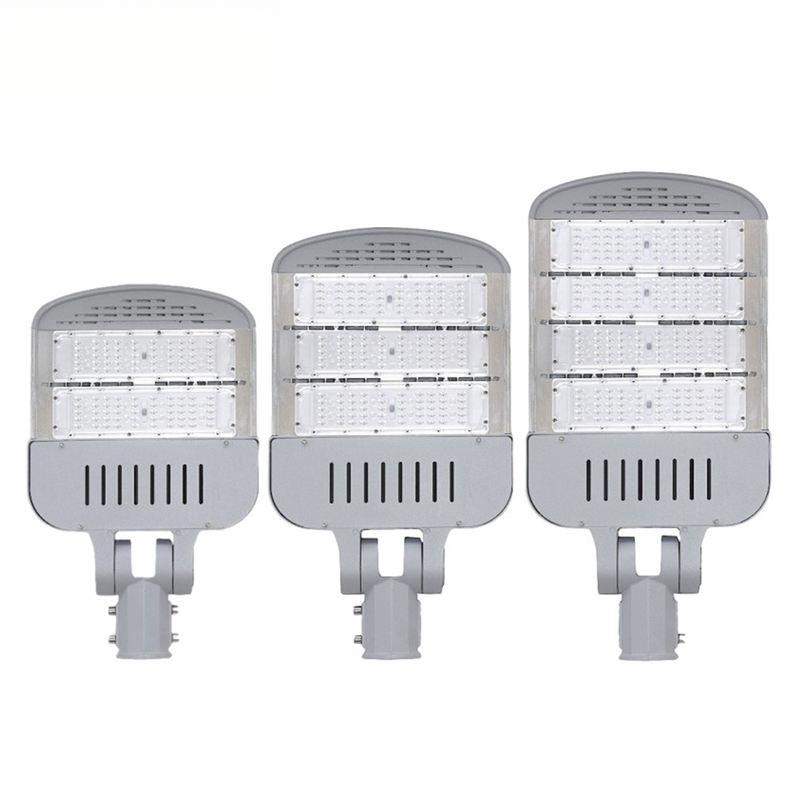

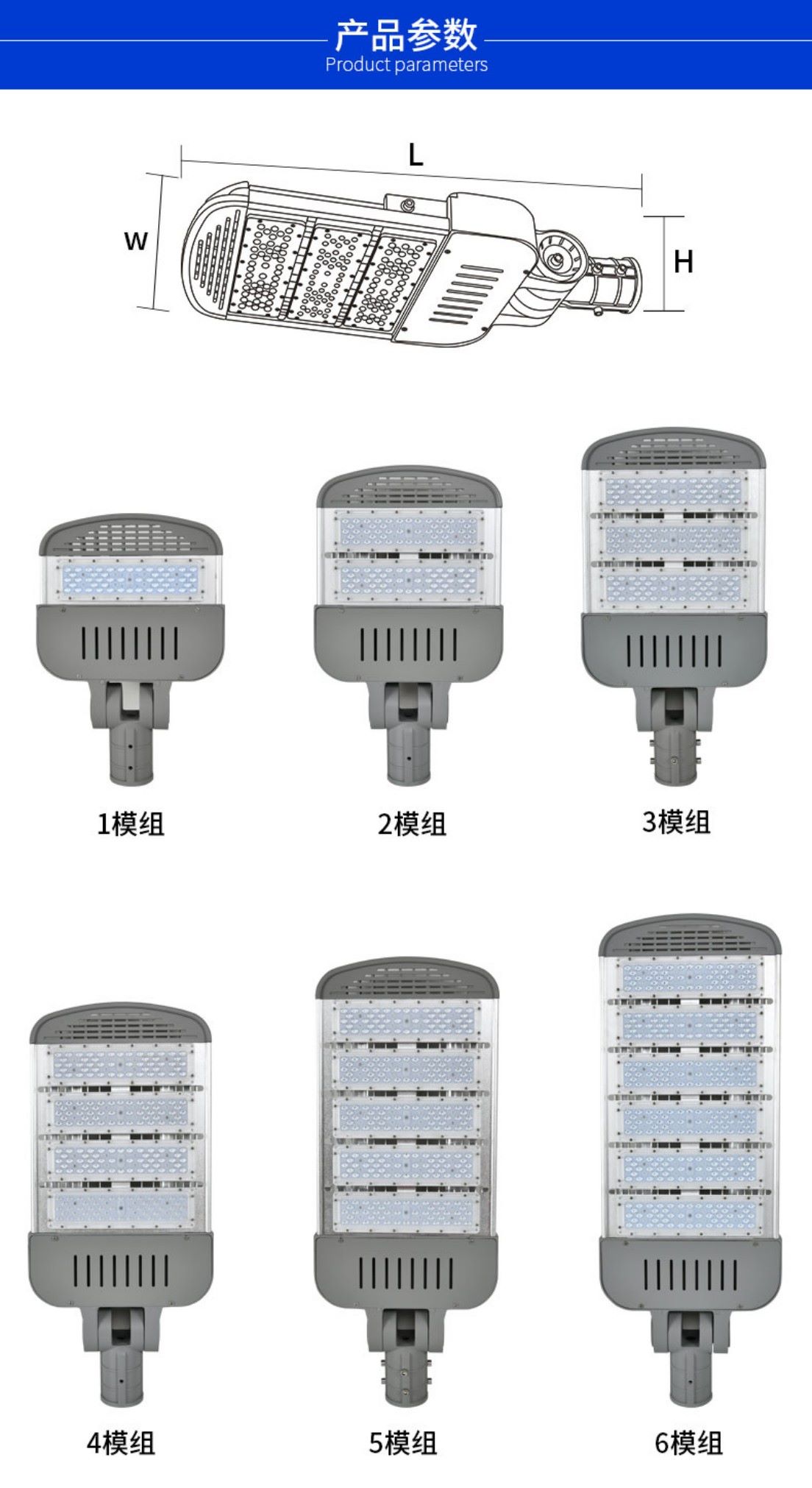

Full Power Range 50W-300W Integrated Matching

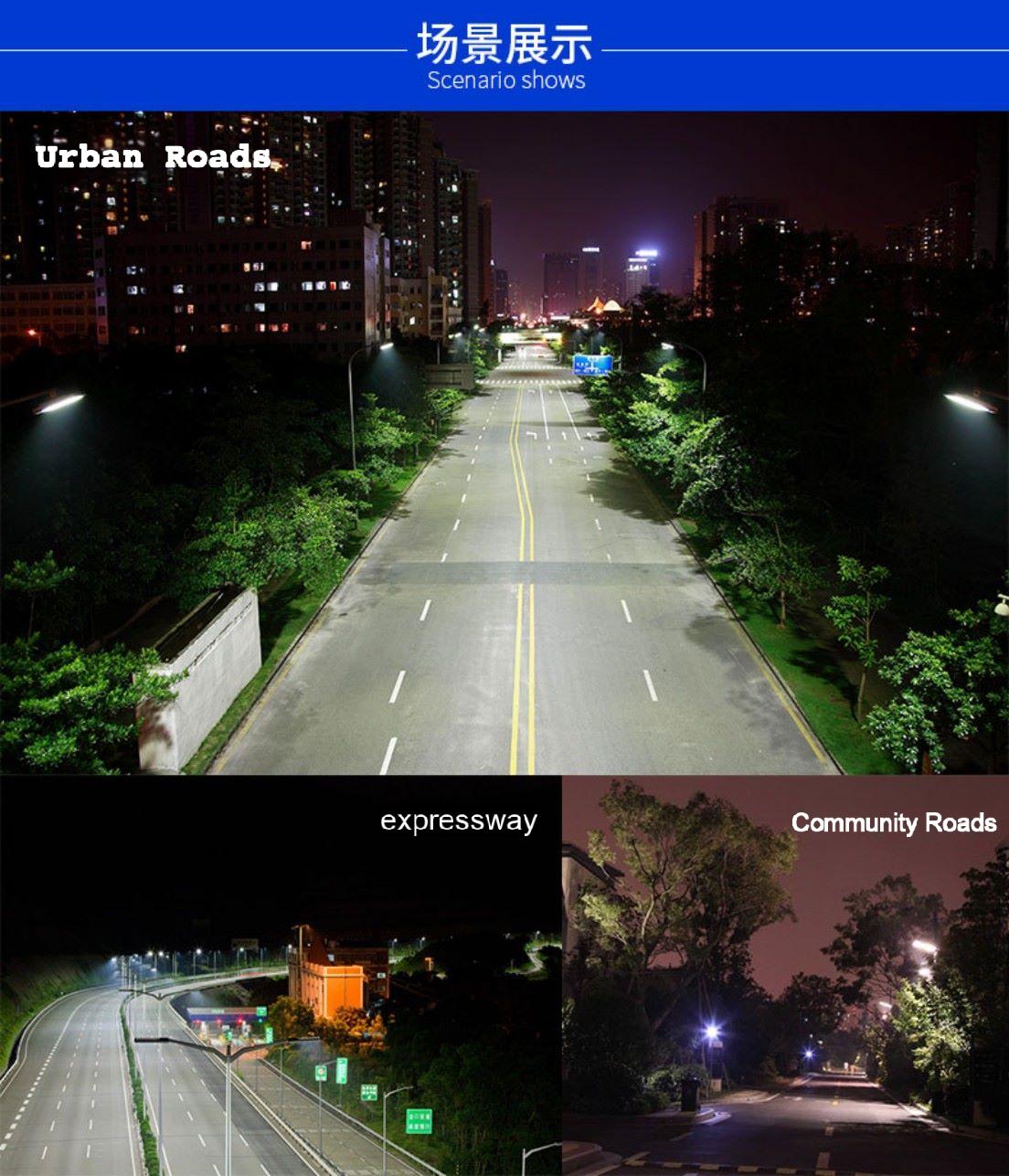

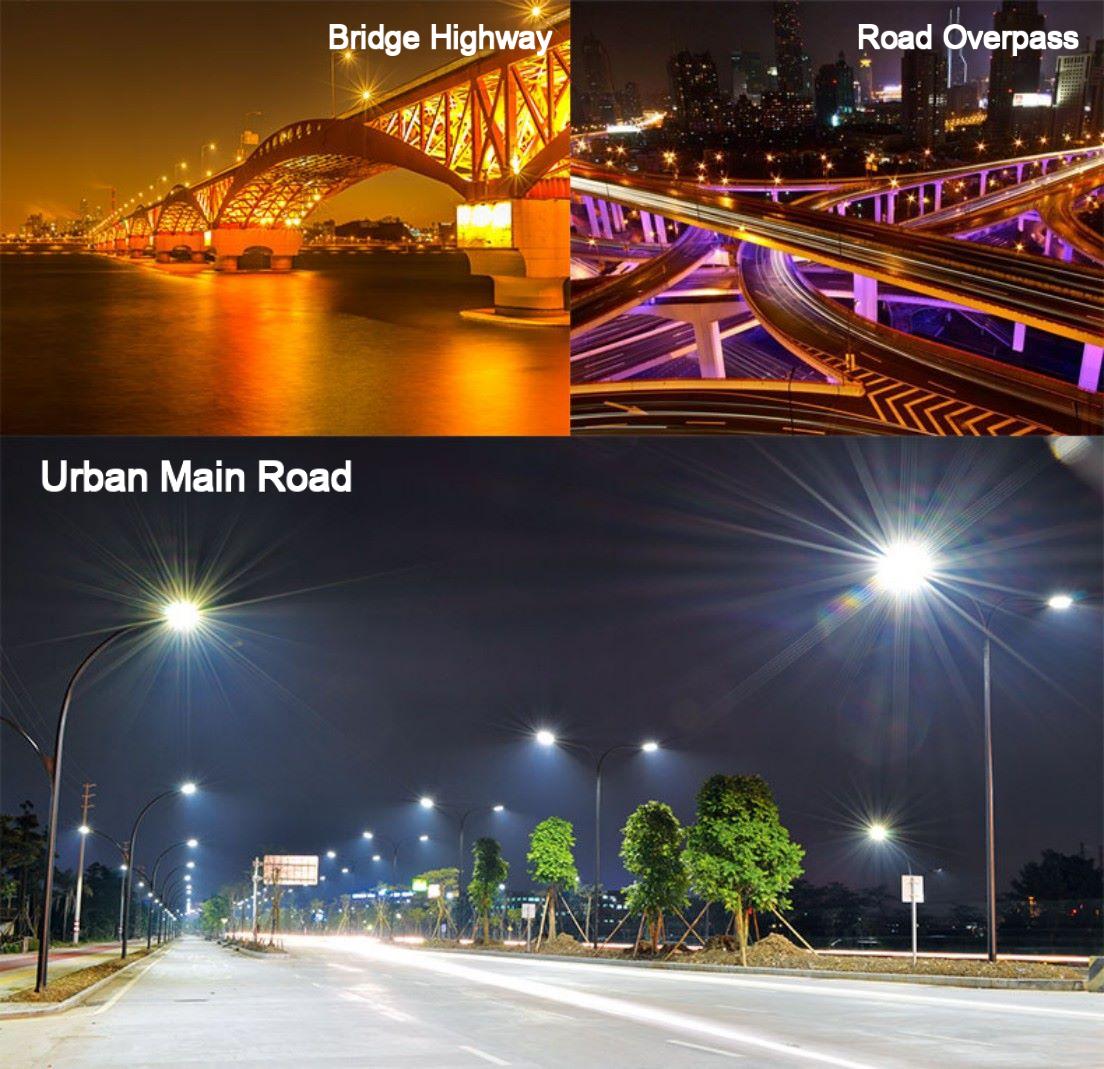

Flexible modular combination realizes complete power options: 50W, 100W, 150W, 200W, 250W, 300W. One unified stretched aluminum housing adapts to residential roads, urban main roads, highways and industrial park lighting, covering all municipal road scenarios.

IP6 Multi-Layer Sealed Waterproof & Dustproof

 Multi-channel high-density silicone rubber sealing structure for the lamp body and module gaps achieves IP67 full waterproof and dustproof rating. It effectively isolates rainwater, sand, fog and salt spray, adapting to desert sandstorm, tropical rainy and coastal high-humidity environments.

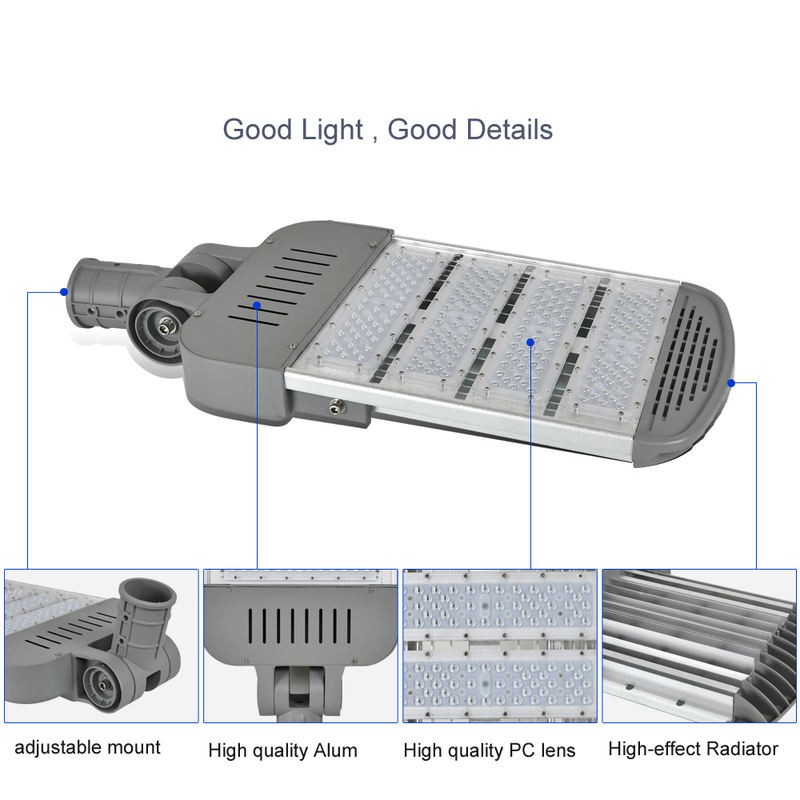

180° Universal Adjustable Mounting Bracket

Thickened metal rotatable bracket supports 180° arbitrary angle adjustment, adapting to different road slopes and installation heights. Standard pole interface fits global mainstream 6m/8m/10m street light poles without extra adapters.

High Brightness SMD LED Chip

Adopts high-lumen SMD LED chips with high luminous efficiency, initial lumen up to 150lm/W. Special chip packaging technology ensures less than 30% light decay after 50,000 hours of continuous lighting, long service life and fewer replacement cycles.
